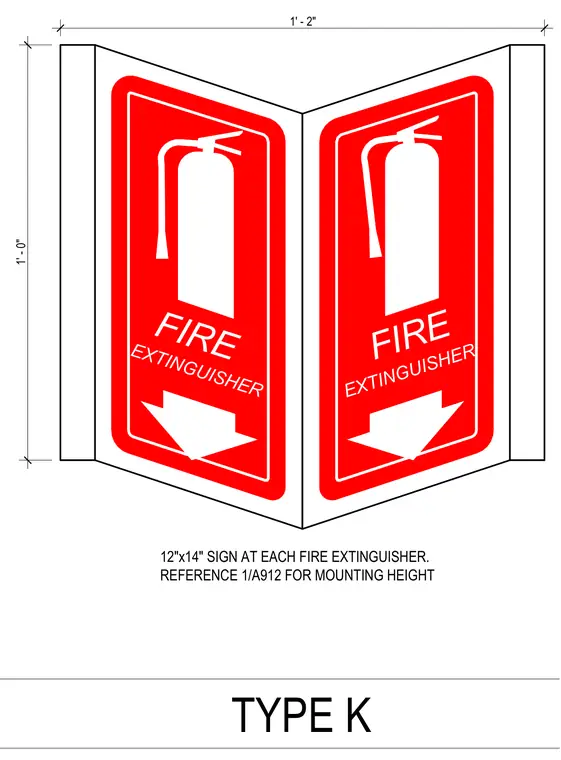

A twelve-by-fourteen-inch sign is installed at each fire extinguisher location with a width of one foot two inches and a height of one foot. The assembly references sheet 1/A912 for the required mounting height.
12"x14" SIGN AT EACH FIRE EXTINGUISHER. REFERENCE 1/A912 FOR MOUNTING HEIGHT TYPE K 1' - 0" 1' - 2" FIRE EXTINGUISHER FIRE EXTINGUISHER
