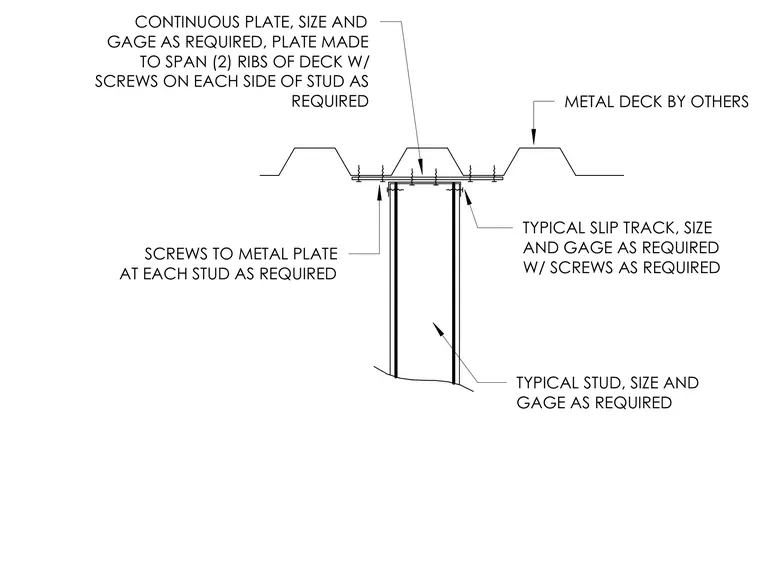

A typical cold-formed steel stud wall terminates below a metal deck provided by others. A slip track of required size and gauge sits at the top of the studs and is secured with screws as required. A continuous plate spans two ribs of the metal deck and is fastened with screws on each side of the stud. Additional screws attach the stud framing to the metal plate at each stud location.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
