HSS Column and Gusset Plate Roof Connection

Materials

Steel

Elements

Columns Beams Roofs Connections / Plates

Connections

Shear Tab / Single Plate Gusset Plate HSS Connection Welded Connection

About this detail

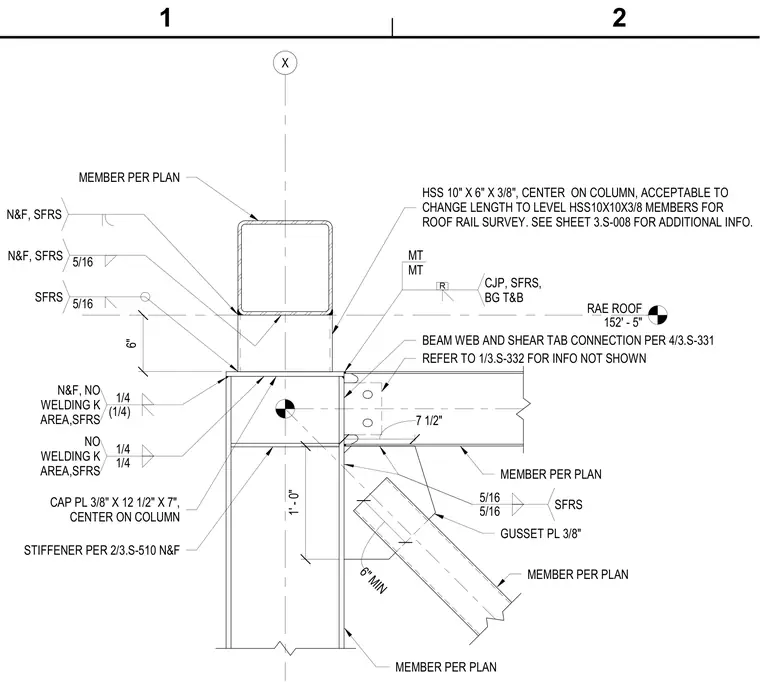

A roof framing connection at an HSS 10x6x3/8 column centered on grid line X, supporting a hollow structural section member and a beam framing via a shear tab. A 3/8-inch gusset plate connects diagonally with 5/16-inch fillet welds designated for special framing seismic requirements, maintaining a 6-inch minimum clearance. A 3/8-inch by 12 1/2-inch by 7-inch cap plate is centered on the column with 1/4-inch fillet welds, leaving the column k-area unwelded near the connection. Stiffener plates are added near and far as specified by detail 2/3.S-510, with member sizing dictated per structural plans.
