Rigid insulation supports a continuous sheet of reinforced membrane that wraps around the roof curb and is secured with seam fastening plates spaced twelve inches on center. Bonding adhesive secures the membrane to the substrate while cut-edge sealant protects exposed edges. A metal cap or counter flashing installs over the top of the curb per the manufacturer instructions. Outside corners receive specialized reinforcement per detail. The adjacent roof deck features crickets and sloped framing directing water toward sumped roof drains.

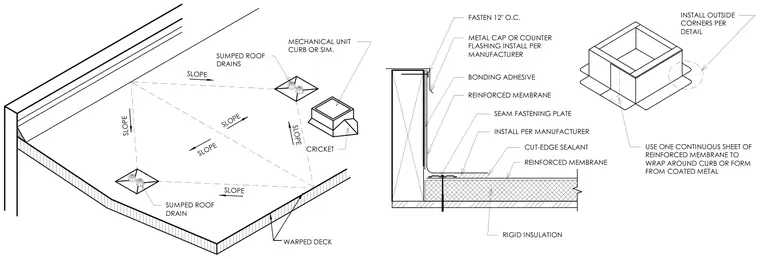

INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL CRICKET SLOPE SLOPE WARPED DECK SUMPED ROOF DRAIN SLOPE SUMPED ROOF DRAINS MECHANICAL UNIT CURB OR SIM. SLOPE SLOPE SLOPE
