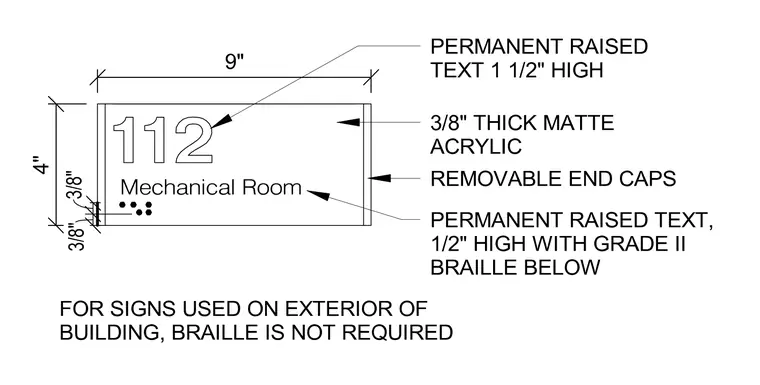

A 4-inch by 9-inch room identification sign consists of a 3/8-inch thick matte acrylic plaque with removable end caps on the sides. The main room number 112 is indicated as permanent raised text 1-1/2 inches high. The secondary text indicating the room function, such as Mechanical Room, is 1/2 inch high with Grade II Braille dots positioned below. A note specifies that for signs used on the exterior of the building, Braille is not required.
