A continuous one-and-a-half-inch steel tubing handrail caps the guardrail assembly, supported by double half-inch by three-inch vertical steel flat bars spaced at four feet maximum. Half-inch horizontal steel rods span between vertical supports, while half-inch by half-inch steel bars center on the floor plate. Metal grate treads feature checkered plate nosing and core drill and grout installations into the structural slab. A three-sixteenths-inch thick painted perforated steel riser closure welds to the stair stringer.

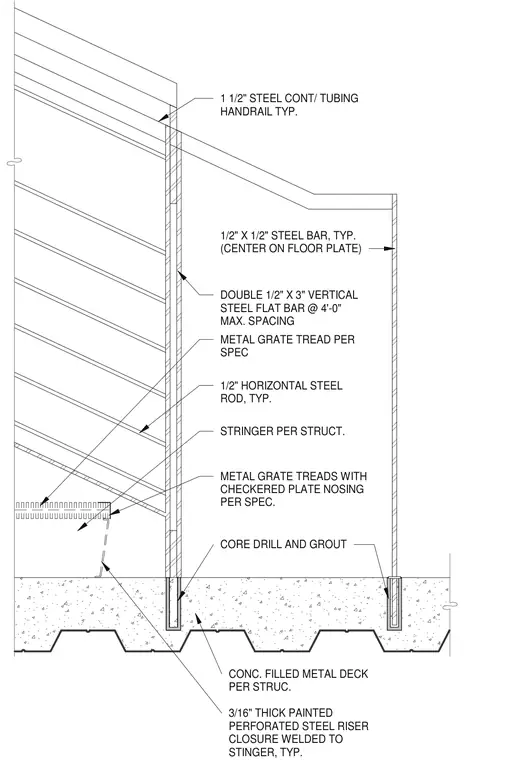

CORE DRILL AND GROUT METAL GRATE TREADS WITH CHECKERED PLATE NOSING PER SPEC. STRINGER PER STRUCT. 1/2" HORIZONTAL STEEL ROD, TYP. METAL GRATE TREAD PER SPEC DOUBLE 1/2" X 3" VERTICAL STEEL FLAT BAR @ 4'-0" MAX. SPACING 1/2" X 1/2" STEEL BAR, TYP. (CENTER ON FLOOR PLATE) 1 1/2" STEEL CONT/ TUBING HANDRAIL TYP. CONC. FILLED METAL DECK PER STRUC. 3/16" THICK PAINTED PERFORATED STEEL RISER CLOSURE WELDED TO STINGER, TYP.
