An extruded aluminum threshold is set directly in sealant at the door transition, aligned with a hollow metal frame located beyond. At grade level, the exterior door landing is flush with the finish floor at the top and slopes away from the building at a maximum of 1:48. At industrial stairway landings, the landing remains level. A joint sealant is provided and installed vertically below the threshold connection.

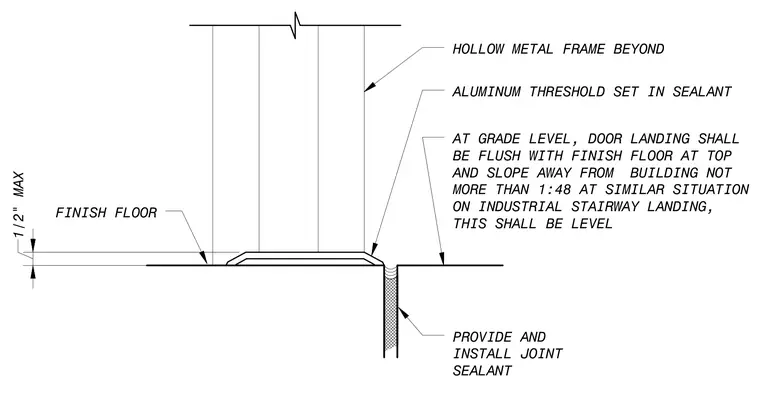

HOLLOW METAL FRAME BEYOND PROVIDE AND INSTALL JOINT SEALANT ALUMINUM THRESHOLD SET IN SEALANT AT GRADE LEVEL, DOOR LANDING SHALL BE FLUSH WITH FINISH FLOOR AT TOP AND SLOPE AWAY FROM BUILDING NOT MORE THAN 1:48 AT SIMILAR SITUATION ON INDUSTRIAL STAIRWAY LANDING, THIS SHALL BE LEVEL FINISH FLOOR 1/2" MAX I
