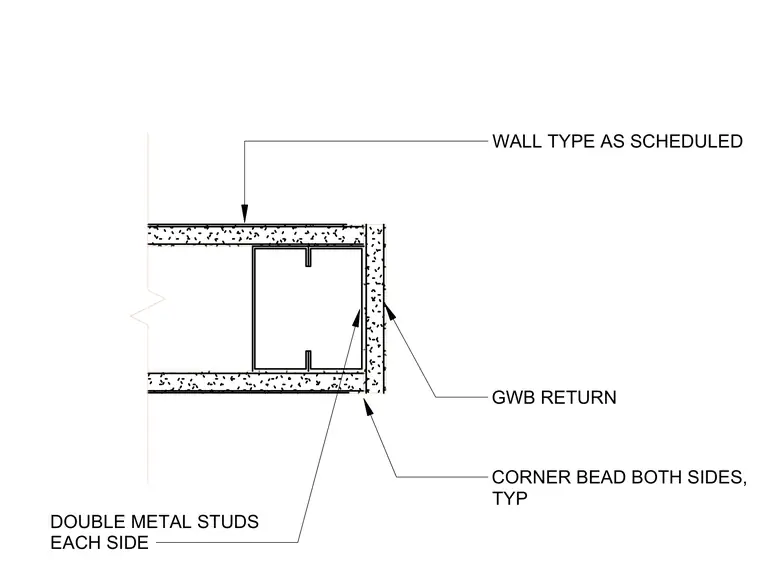

Double metal studs form the jamb of the wall opening to provide extra rigidity for the framing. Gypsum wallboard clads the faces of the wall and returns across the end of the opening. Corner beads protect the external gypsum board corners on both sides of the return.
WALL TYPE AS SCHEDULED CORNER BEAD BOTH SIDES, TYP GWB RETURN DOUBLE METAL STUDS EACH SIDE
