Storefront Sill Header and Jamb Details

Materials

Elements

Beams Walls Doors Storefronts Floors / Slabs Connections / Plates

About this detail

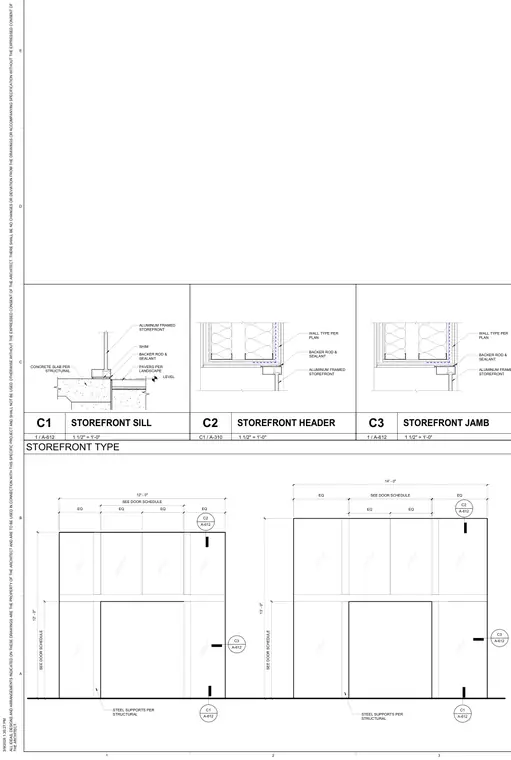

Storefront connection details include sill, header, and jamb conditions for an aluminum framed storefront system. The sill detail interfaces with a concrete slab per structural, incorporating shims, backer rod, and sealant adjacent to exterior pavers per landscape. The header and jamb details interface with wall types per plan and are supported by steel supports per structural. Backer rod and sealant are provided at the perimeter joints of the storefront framing. Dimensions and door schedules coordinate the spacing and layout of the storefront types.
