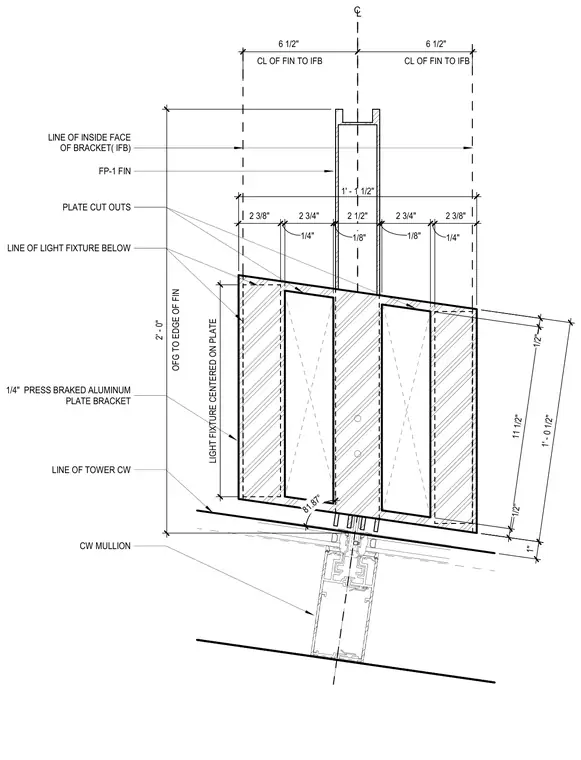

Connection of a crown light valance to a curtain wall mullion at an angle of 81.87 degrees. The assembly features an FP-1 fin aligned with the centerline of the inside face of the bracket, supported by a 1/4" press-braked aluminum plate bracket with plate cutouts. The light fixture is centered on the plate and aligned with the tower curtain wall.
C L O F F I N T O I F B 6 1 / 2 " C L O F F I N T O I F B 6 1 / 2 " O F G T O E D G E O F F I N 2 ' - 0 " 8 1 . 8 7 ° 1 ' - 0 1 / 2 " L I G H T F I X T U R E C E N T E R E D O N P L A T E LINE OF TOWER CW 1/4" PRESS BRAKED ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS 1 ' - 1 1 / 2 " 1 " 1 / 2 " 1 1 1 / 2 " 1 / 2 " 2 3 / 8 " 1 / 4 " 2 3 / 4 " 1 / 8 " 2 1 / 2 " 1 / 8 " 2 3 / 4 " 1 / 4 " 2 3 / 8 " LINE OF INSIDE FACE OF BRACKET( IFB) CL CW MULLION
