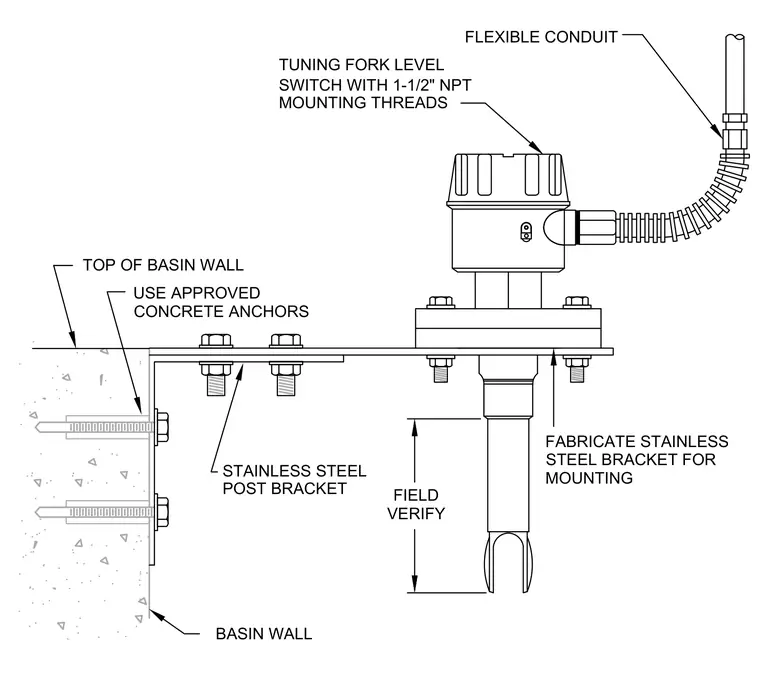

A tuning fork level switch with one-and-a-half-inch National Pipe Thread mounting threads is secured to a fabricated stainless steel mounting bracket. The bracket is fastened to the top of the concrete basin wall using approved concrete anchors and bolted connections. Flexible conduit connects to the level switch housing for electrical wiring. Field dimensions are to be verified.
TUNING FORK LEVEL SWITCH WITH 1-1/2" NPT MOUNTING THREADS STAINLESS STEEL POST BRACKET BASIN WALL FABRICATE STAINLESS STEEL BRACKET FOR MOUNTING FLEXIBLE CONDUIT TOP OF BASIN WALL FIELD VERIFY USE APPROVED CONCRETE ANCHORS
