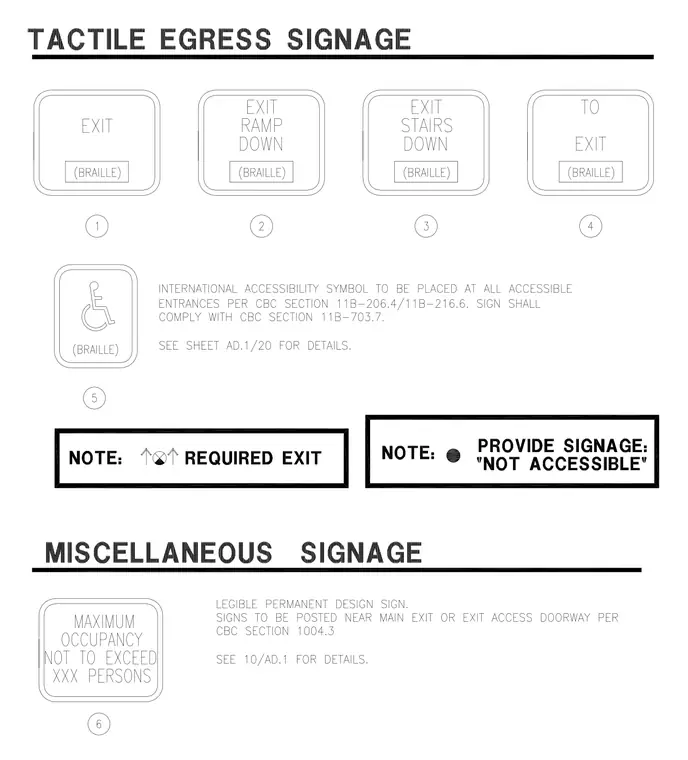

Tactile egress signage configurations include exit signs, exit ramp down signs, exit stairs down signs, and to exit signs, each featuring braille text below the main message. The international accessibility symbol sign includes braille and must be placed at all accessible entrances per California Building Code sections 11B-206.4 through 11B-216.6, complying with section 11B-703.7. Miscellaneous signage includes required exit notes with directional arrows and not accessible notices, alongside maximum occupancy signs indicating occupant load limits.
