Architectural · A-2SYKJ

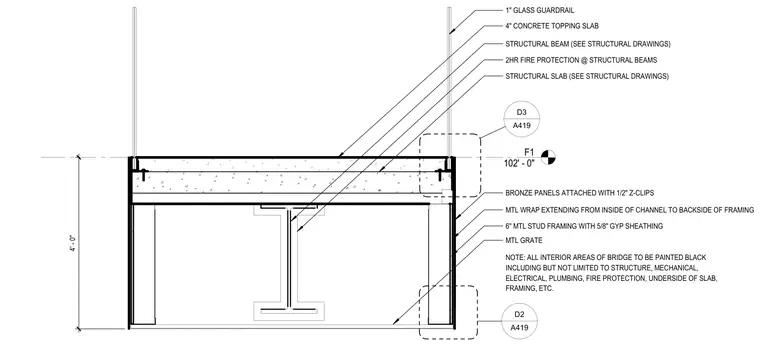

Pedestrian Bridge Cross Section with Glass Guardrail

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

About this detail

This structural and architectural section details a bridge assembly supported by a structural steel beam and slab system with two-hour fire protection. A four-inch concrete topping slab sits above the structural slab, bounded by edge framing and a one-inch glass guardrail. The exterior fascia features bronze panels attached with half-inch Z-clips over a metal wrap extending from the inside of the channel to the backside of the framing. Six-inch metal stud framing with five-eighths-inch gypsum sheathing forms the lower perimeter, paired with metal grating at the underside. A general note mandates that all interior areas of the bridge, including structural, mechanical, electrical, plumbing, fire protection, and framing, must be painted black.
