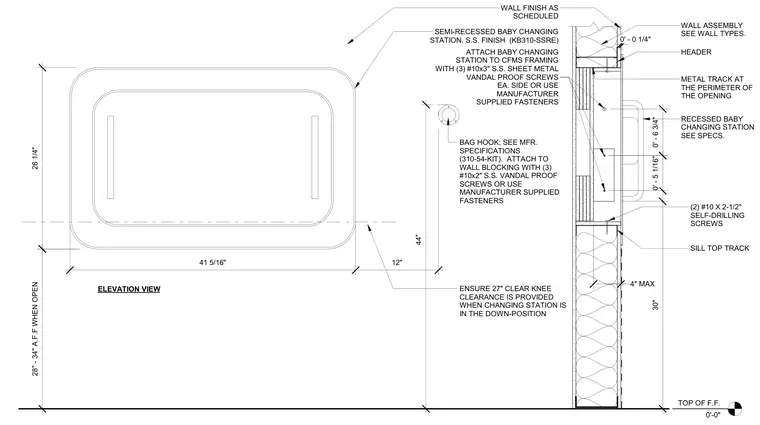

A semi-recessed stainless steel baby changing station is anchored to cold-formed metal framing with three number ten by three-inch stainless steel sheet metal vandal-proof screws on each side, or using manufacturer-supplied fasteners. The unit is installed within a framed wall assembly with metal track at the perimeter of the opening, header, and sill top track secured by two number ten by two-and-a-half-inch self-drilling screws. A bag hook is attached to wall blocking with three number ten by two-inch stainless steel vandal-proof screws. The changing station is positioned twenty-eight to thirty-four inches above the finished floor when open, ensuring twenty-seven inches of clear knee clearance is provided.
30" 0' - 5 1/16" 0' - 6 3/4" 4" MAX 0' - 0 1/4" WALL FINISH AS SCHEDULED SEMI-RECESSED BABY CHANGING STATION. S.S. FINISH (KB310-SSRE) ATTACH BABY CHANGING STATION TO CFMS FRAMING WITH (3) #10x3" S.S. SHEET METAL VANDAL PROOF SCREWS EA. SIDE OR USE MANUFACTURER SUPPLIED FASTENERS WALL ASSEMBLY SEE WALL TYPES. METAL TRACK AT THE PERIMETER OF THE OPENING RECESSED BABY CHANGING STATION SEE SPECS. 0'-0" TOP OF F.F. SILL TOP TRACK (2) #10 X 2-1/2" SELF-DRILLING SCREWS HEADER 28" - 34" A.F.F WHEN OPEN 26 1/4" 41 5/16" 12" 44" ELEVATION VIEW BAG HOOK; SEE MFR. SPECIFICATIONS (310-54-KIT). ATTACH TO WALL BLOCKING WITH (3) #10x2" S.S. VANDAL PROOF SCREWS OR USE MANUFACTURER SUPPLIED FASTENERS ENSURE 27" CLEAR KNEE CLEARANCE IS PROVIDED WHEN CHANGING STATION IS IN THE DOWN-POSITION
