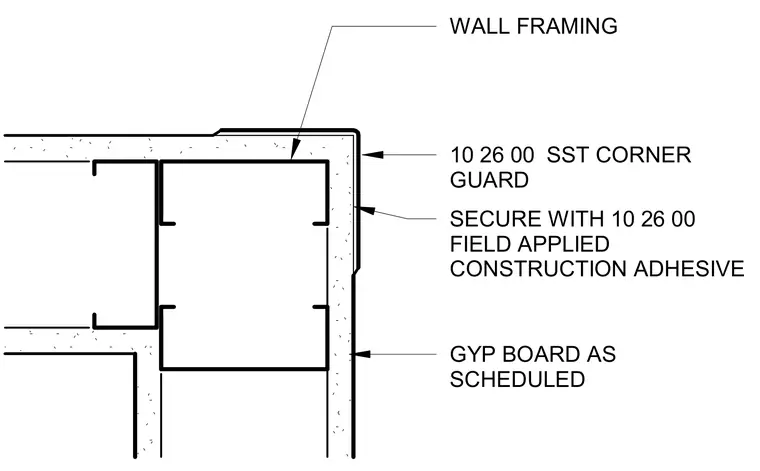

A stainless steel corner guard is applied to an exterior wall corner over gypsum board walls supported by metal stud framing. The guard is secured directly to the gypsum board using a field-applied construction adhesive. Gypsum board thickness and type are installed as scheduled.
GYP BOARD AS SCHEDULED 10 26 00 SST CORNER GUARD SECURE WITH 10 26 00 FIELD APPLIED CONSTRUCTION ADHESIVE WALL FRAMING
