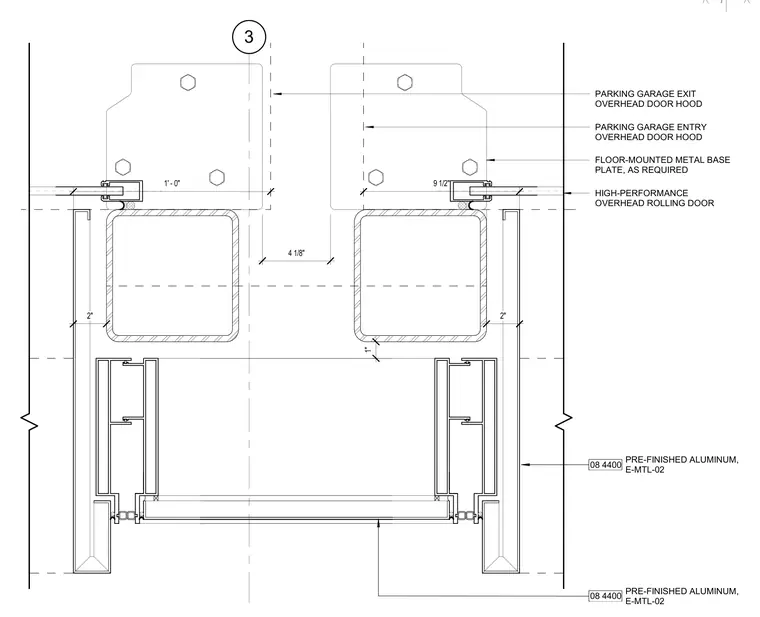

This plan detail shows a dual rolling door jamb assembly featuring high-performance overhead rolling doors with parking garage exit and entry overhead door hoods. The vertical guides are framed with pre-finished aluminum sections specified as 08 4400 E-MTL-02. The assembly is supported by floor-mounted metal base plates, sized as required. Dimensions indicate clear spacing and offsets including 4 1/8 inches, 1 foot, 9 1/2 inches, and 2-inch clearances.
3 08 4400 PRE-FINISHED ALUMINUM, E-MTL-02 08 4400 PRE-FINISHED ALUMINUM, E-MTL-02 PARKING GARAGE EXIT OVERHEAD DOOR HOOD PARKING GARAGE ENTRY OVERHEAD DOOR HOOD 9 1/2" 1' - 0" FLOOR-MOUNTED METAL BASE PLATE, AS REQUIRED 2" 2" 4 1/8" HIGH-PERFORMANCE OVERHEAD ROLLING DOOR 1"
