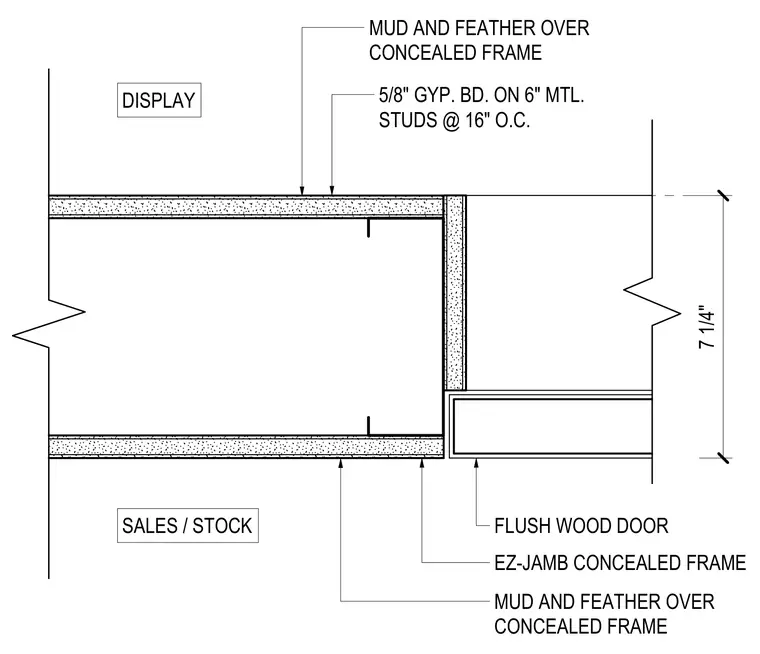

This plan detail shows a flush wood door set within a seven-quarter-inch Ez-Jamb concealed frame. The surrounding partition is framed with six-inch metal studs at sixteen inches on center and finished with five-eighths-inch gypsum board. Mud and feather compound is applied over the concealed frame flange to create a seamless flush transition with the drywall.
5/8" GYP. BD. ON 6" MTL. STUDS @ 16" O.C. FLUSH WOOD DOOR 7 1/4" EZ-JAMB CONCEALED FRAME MUD AND FEATHER OVER CONCEALED FRAME MUD AND FEATHER OVER CONCEALED FRAME SALES / STOCK DISPLAY
