A manufactured wall cabinet mounts to the wall assembly using typical wood blocking as required. Two-inch adjustable shelves with hardwood edges install internally. Light rails attach at the bottom of the casework per the manufacturer specifications, alongside standard cabinet pulls. The unit maintains a one-foot depth with height detailed per elevations.

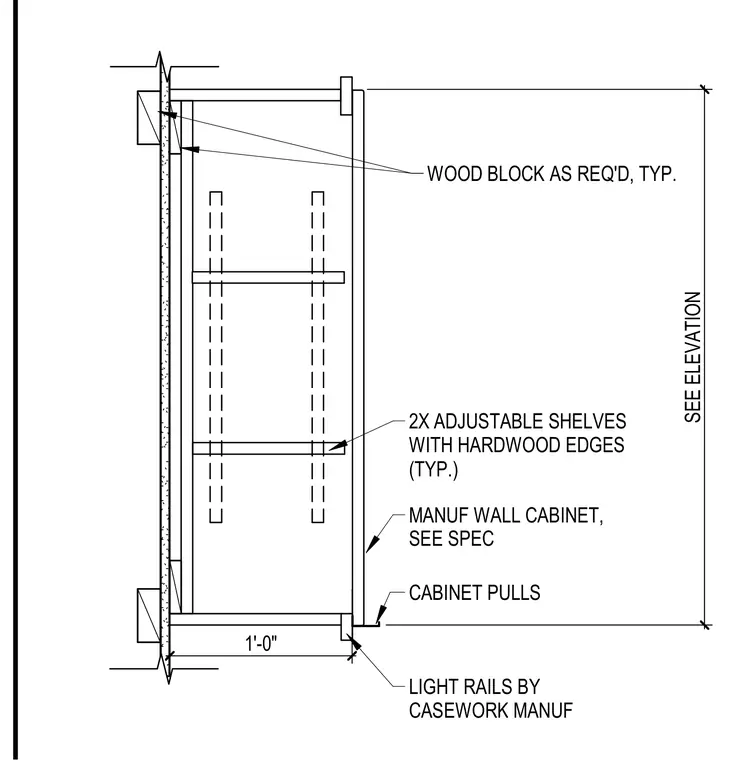

WOOD BLOCK AS REQ'D, TYP. 2X ADJUSTABLE SHELVES WITH HARDWOOD EDGES (TYP.) LIGHT RAILS BY CASEWORK MANUF MANUF WALL CABINET, SEE SPEC CABINET PULLS 1'-0" SEE ELEVATION
