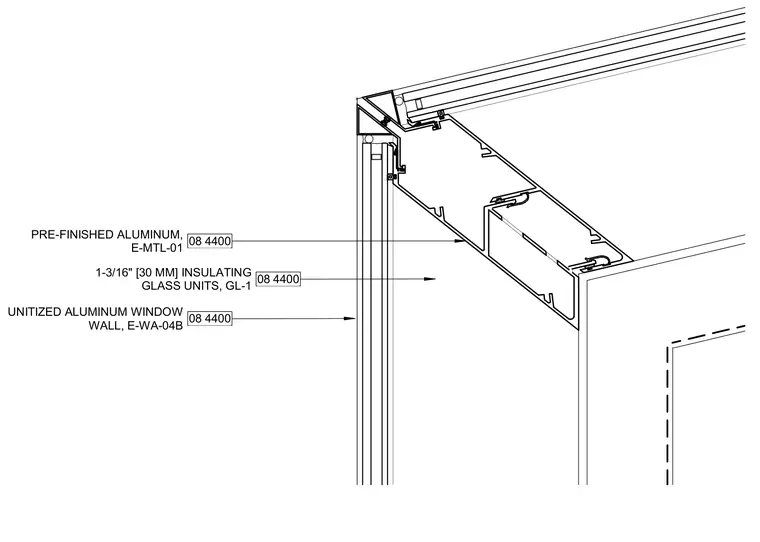

A unitized aluminum window wall corner assembly consists of pre-finished aluminum framing members receiving 1-3/16 inch [30 mm] insulating glass units designated as GL-1. The extruded aluminum profiles interlock to form the curtain wall corner condition, maintaining continuous thermal and moisture barriers.
08 4400 UNITIZED ALUMINUM WINDOW WALL, E-WA-04B 08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01
