Architectural · A-2S4NQ

Drywall Bulkhead and Acoustical Ceiling Transition Detail

Materials

Elements

Partitions Ceilings Floors / Slabs Bracing Anchors / Embeds

About this detail

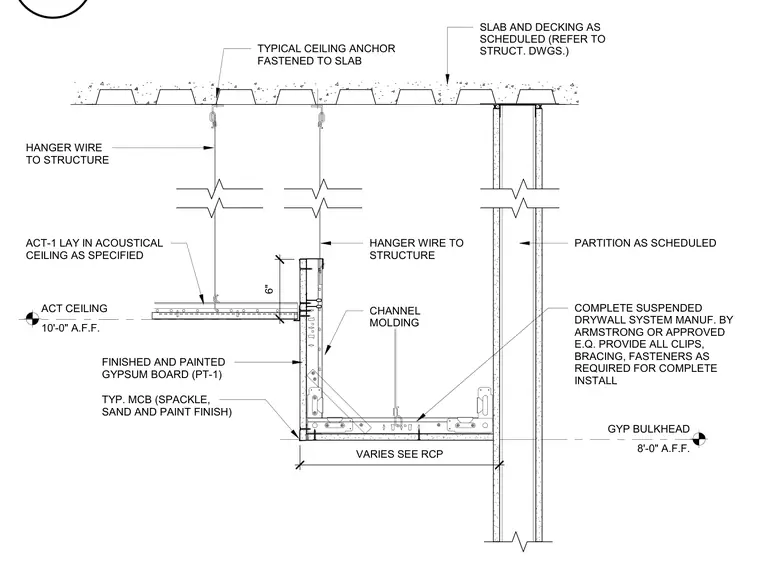

A suspended gypsum board bulkhead meets an acoustical ceiling system below a concrete slab on metal deck. The assembly hangs from typical ceiling anchors fastened into the structural slab with hanger wires supporting both the metal framing and the adjacent ACT-1 lay-in acoustical ceiling at eight feet above finished floor. The drywall bulkhead features a finished and painted gypsum board face with a metal channel molding, spackled, sanded, and painted finish, and complete suspended drywall system framing manufactured by Armstrong or an approved equivalent. Additional hanger wires, clips, and bracing tie the bulkhead framing back to the structure while transitioning to a vertical partition as scheduled.
