Architectural · A-2S2J5

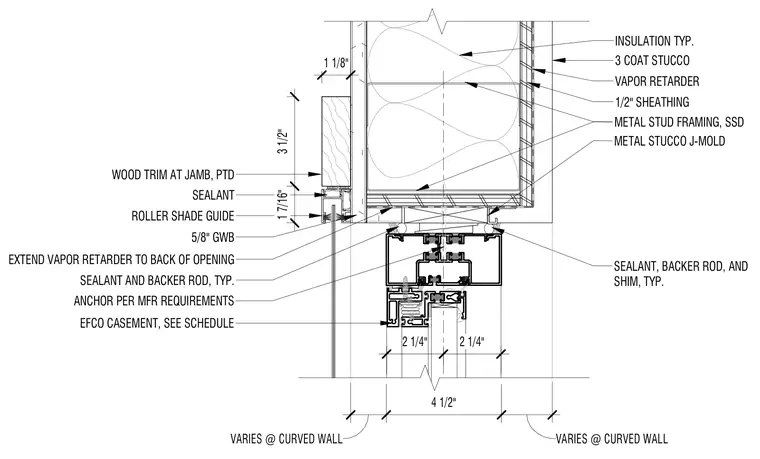

Classroom Window Jamb Detail at Stucco Wall

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Walls Windows Insulation Anchors / Embeds Roof / Floor Openings

About this detail

An Efco casement window is anchored into a cold-formed steel stud framing assembly with shims, backer rod, and perimeter sealant. The exterior finish consists of a three-coat stucco system over half-inch sheathing, a vapor retarder extended to the back of the opening, and a metal stucco J-mold. The interior features painted wood trim at the jamb alongside a roller shade guide and five-eighths-inch gypsum wallboard.
