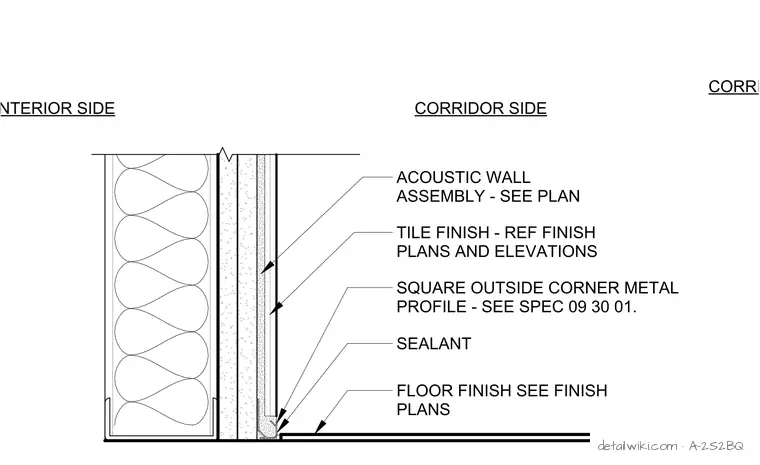

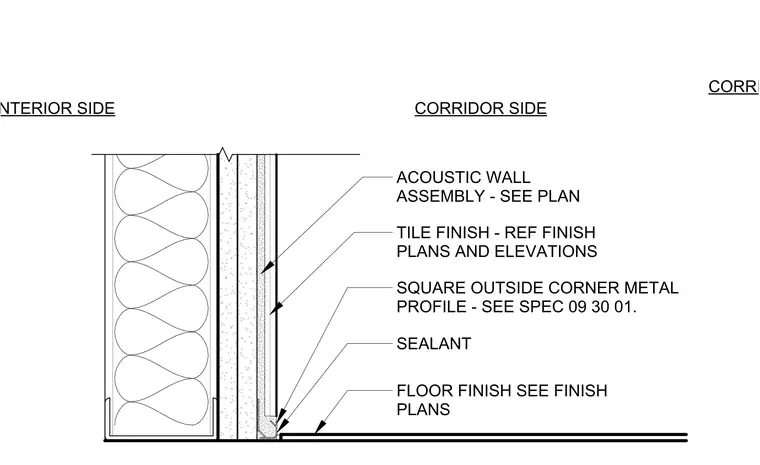

Stud-framed partition with batt insulation and a tile finish on the corridor side. A square outside corner metal profile protects the tile edges at the corridor corner, with sealant applied at the junction between the metal profile and the floor finish. The acoustic wall assembly and floor finish are to be installed as specified in the finish plans and project specifications.
