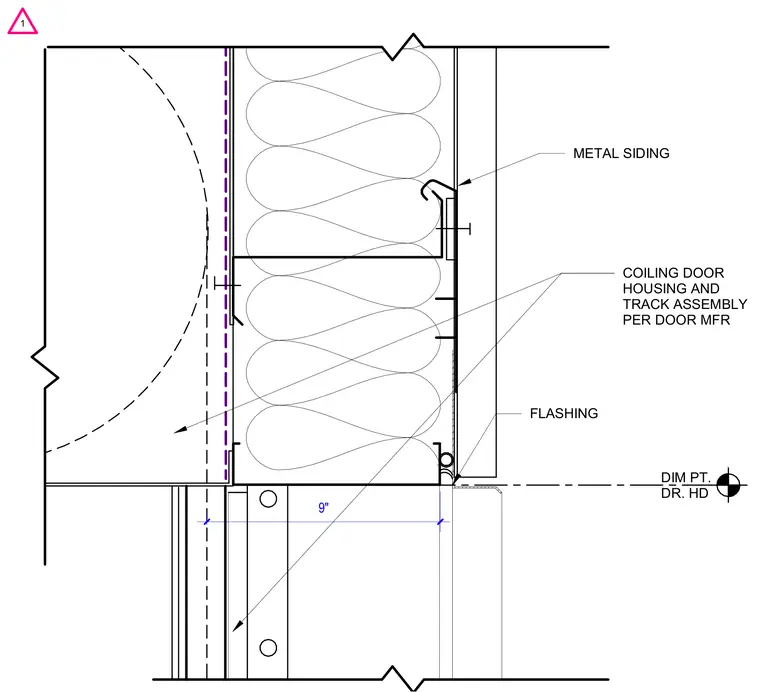

A coiling door housing and track assembly is integrated into a metal siding wall construction. Custom flashing is detailed at the door head dimension point to provide weatherproofing. The assembly accommodates the coiling door mechanism adjacent to the insulated wall framing.
METAL SIDING COILING DOOR HOUSING AND TRACK ASSEMBLY PER DOOR MFR FLASHING DIM PT. DR. HD 9" 1
