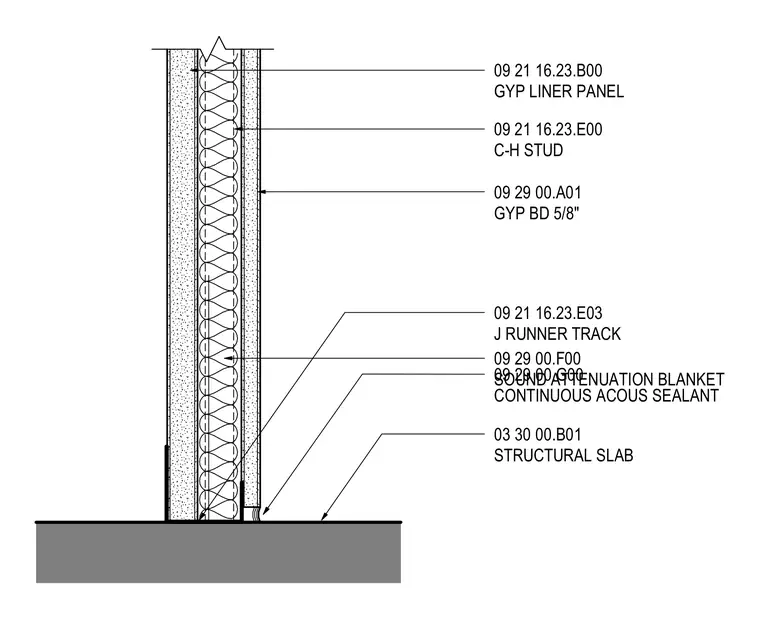

An acoustic shaft wall assembly terminates at a structural slab. The assembly is built around C-H studs and gypsum liner panels, framed at the base with a J runner track anchored to the concrete floor. Sound attenuation blankets fill the stud cavity for acoustic performance. The wall surfaces are finished on both sides with five-eighths-inch gypsum board, sealed at the base with a continuous acoustic sealant against the slab.
09 29 00.F00 SOUND ATTENUATION BLANKET 09 29 00.A01 GYP BD 5/8" 09 29 00.G00 CONTINUOUS ACOUS SEALANT 09 21 16.23.B00 GYP LINER PANEL 03 30 00.B01 STRUCTURAL SLAB 09 21 16.23.E00 C-H STUD 09 21 16.23.E03 J RUNNER TRACK
