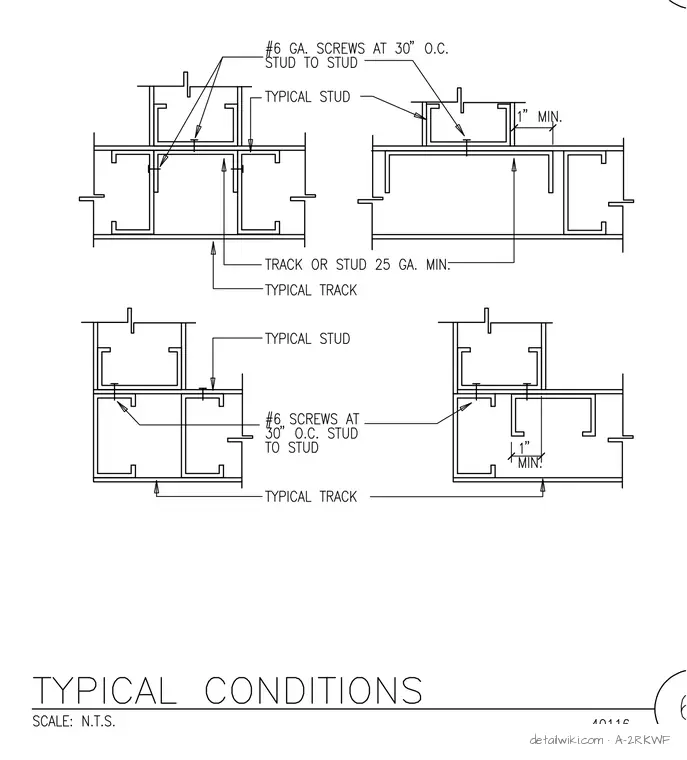

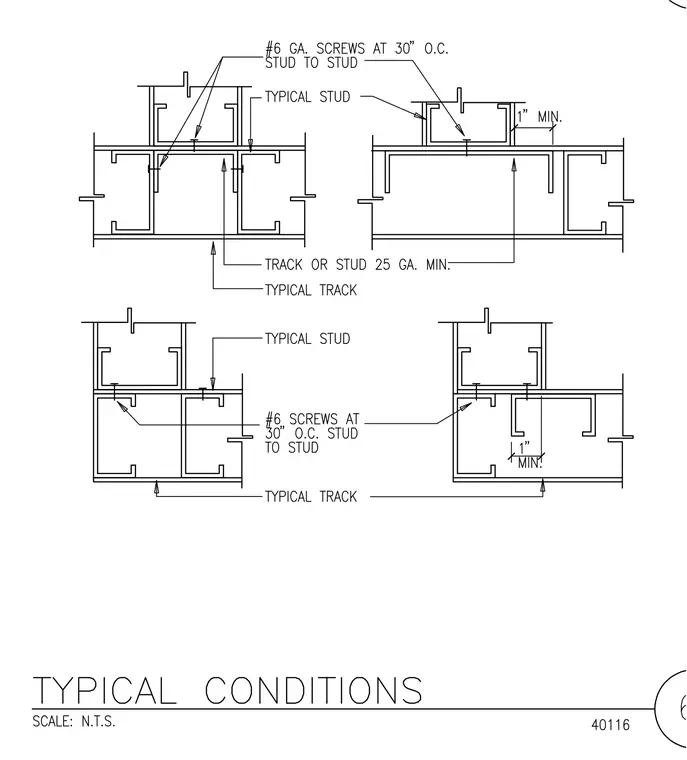

Cold-formed steel stud intersections and wall junctions utilize typical tracks and studs with a minimum gauge of twenty-five. Members are connected using number six gauge screws spaced at thirty inches on center from stud to stud. Details specify a one inch minimum clearance or overlap at specific corner conditions.
