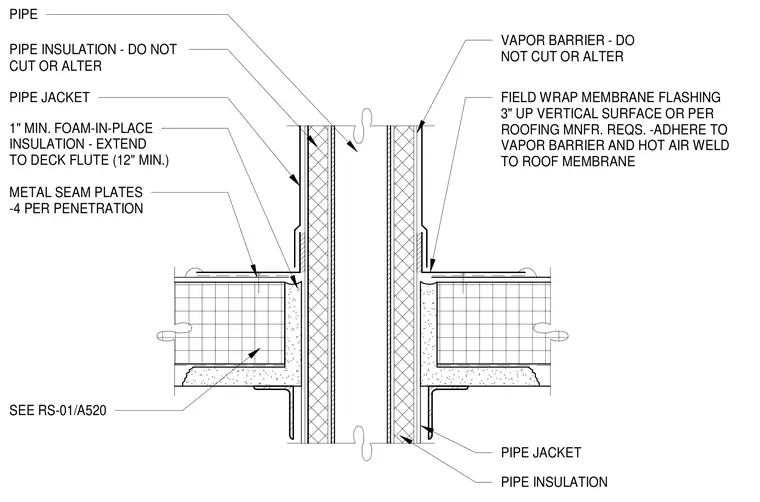

An insulated pipe penetrates the roof assembly, encased in a protective pipe jacket and surrounded by a minimum of one inch of foam-in-place insulation that extends twelve inches minimum to the deck flute. Four metal seam plates secure the base per penetration. A vapor barrier runs along the vertical surface left uncut or altered, and a field-wrapped membrane flashing extends three inches up the vertical surface or per roofing manufacturer requirements, adhered to the vapor barrier and hot air welded to the roof membrane.
PIPE INSULATION PIPE JACKET PIPE PIPE JACKET PIPE INSULATION - DO NOT CUT OR ALTER 1" MIN. FOAM-IN-PLACE INSULATION - EXTEND TO DECK FLUTE (12" MIN.) METAL SEAM PLATES -4 PER PENETRATION SEE RS-01/A520 VAPOR BARRIER - DO NOT CUT OR ALTER FIELD WRAP MEMBRANE FLASHING 3" UP VERTICAL SURFACE OR PER ROOFING MNFR. REQS. -ADHERE TO VAPOR BARRIER AND HOT AIR WELD TO ROOF MEMBRANE
