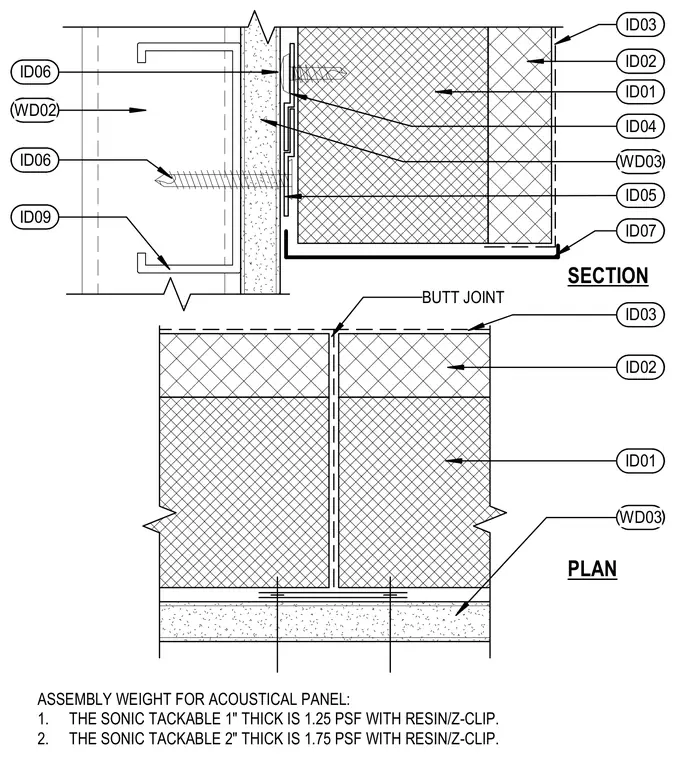

An acoustical tackable wall panel is mounted to a gypsum board substrate over metal stud framing using Z-clips secured with screws. Adjoining panels form a butt joint with continuous backing. The assembly weight is specified as 1.25 pounds per square foot for one-inch thick panels and 1.75 pounds per square foot for two-inch thick panels when installed with resin and Z-clips.
BUTT JOINT SECTION PLAN ID05 ID04 ID07 WD02 ID09 ID06 ID06 ID01 ID02 ID03 WD03 ID03 ID02 ID01 WD03 ASSEMBLY WEIGHT FOR ACOUSTICAL PANEL: 1. THE SONIC TACKABLE 1" THICK IS 1.25 PSF WITH RESIN/Z-CLIP. 2. THE SONIC TACKABLE 2" THICK IS 1.75 PSF WITH RESIN/Z-CLIP.
