An anodized aluminum channel is provided and installed to match the window wall, notched, adjusted, and trimmed as required above and below the opening. The assembly features an anodized aluminum mullion adjacent to glazing units with flat black glazing sealant applied at the interface.

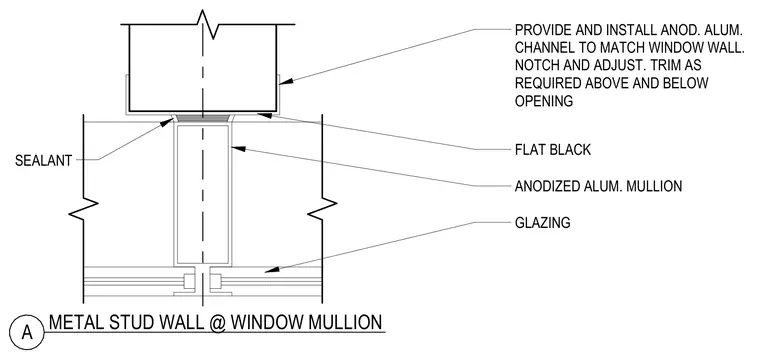

PROVIDE AND INSTALL ANOD. ALUM. CHANNEL TO MATCH WINDOW WALL. NOTCH AND ADJUST. TRIM AS REQUIRED ABOVE AND BELOW OPENING FLAT BLACK GLAZING SEALANT A METAL STUD WALL @ WINDOW MULLION ANODIZED ALUM. MULLION
