Architectural · A-2R5HA

Look Up Moment Ceiling Soffit and Wrapped Steel Beam Detail

Materials

Elements

About this detail

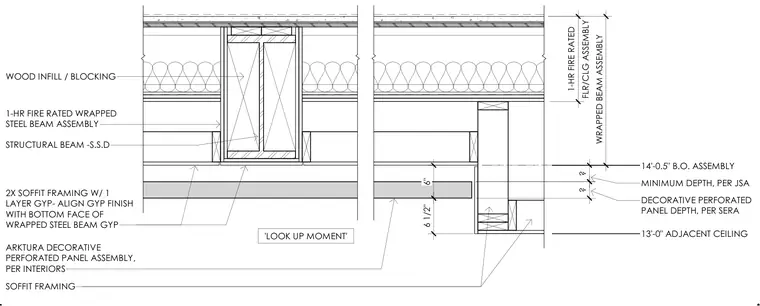

The assembly features a structural steel beam enclosed within a one-hour fire-rated wrapped gypsum board assembly, supplemented by wood infill and blocking. Two-by wood soffit framing supports a single layer of gypsum board, aligned flush with the bottom face of the wrapped steel beam. An Arktura decorative perforated panel assembly suspends below the framing at a designated depth per interior specifications, adjacent to a lower ceiling level at thirteen feet zero inches. Vertical and horizontal dimensions establish the bottom of the assembly at fourteen feet zero and a half inches and coordinate the relative depths of the decorative panels and soffit construction.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
