Wall Mount Lavatory

Elements

About this detail

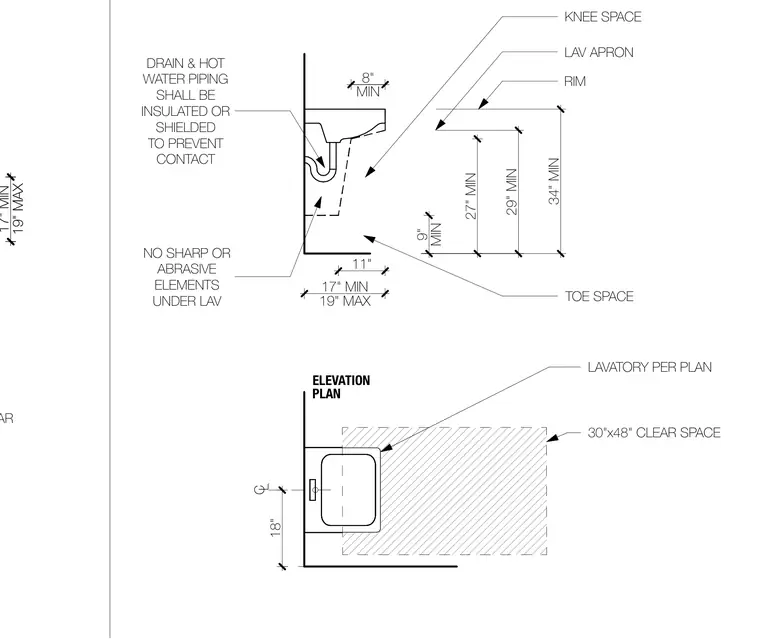

A wall-mounted lavatory is installed with specific accessibility clearances including a thirty by forty-eight inch clear floor space, knee space, apron, rim height, toe space, and side wall distances. Drainage and hot water piping are insulated or shielded to prevent contact, and no sharp or abrasive elements are permitted under the lavatory. Standard accessibility dimensions govern the rim height, knee clearance, and toe clearance.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
