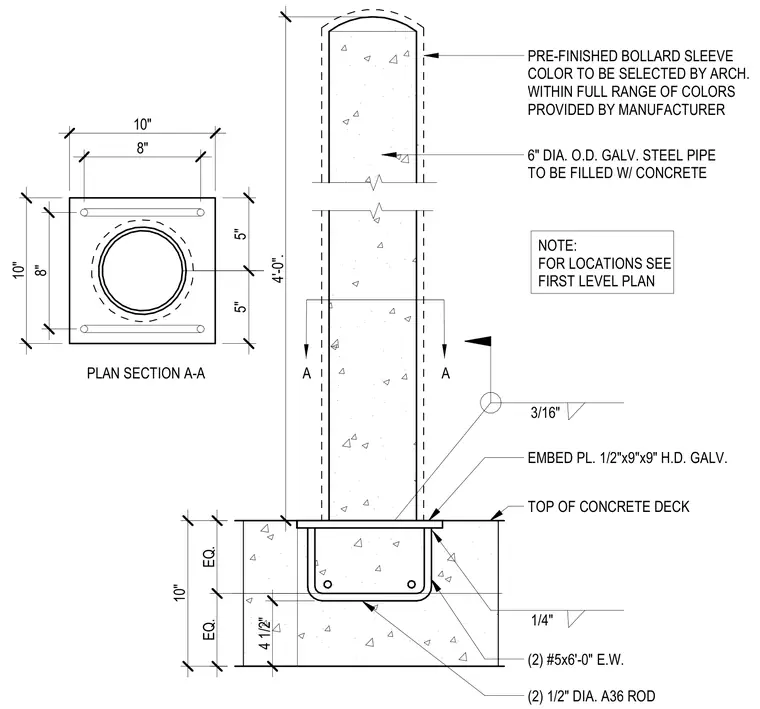

A six-inch outer diameter galvanized steel pipe is filled with concrete and anchored to a concrete deck. The pipe is welded with a three-sixteenths fillet weld to a half-inch by nine-inch by nine-inch hot-dip galvanized embed plate. The embed plate is anchored into the concrete deck with two half-inch diameter ASTM A36 steel rods and two number five reinforcing bars at six feet zero inches each way, welded with a quarter-inch fillet weld. A pre-finished bollard sleeve with a manufacturer color selected by the architect covers the assembly, which extends four feet zero inches above the top of the concrete deck.
6" DIA. O.D. GALV. STEEL PIPE TO BE FILLED W/ CONCRETE EMBED PL. 1/2"x9"x9" H.D. GALV. (2) 1/2" DIA. A36 ROD 1/4" (2) #5x6'-0" E.W. 3/16" A A PLAN SECTION A-A NOTE: FOR LOCATIONS SEE FIRST LEVEL PLAN TOP OF CONCRETE DECK PRE-FINISHED BOLLARD SLEEVE COLOR TO BE SELECTED BY ARCH. WITHIN FULL RANGE OF COLORS PROVIDED BY MANUFACTURER 4 1/2" EQ. EQ. 10" 5" 5" 8" 10" 8" 10" 4'-0".
