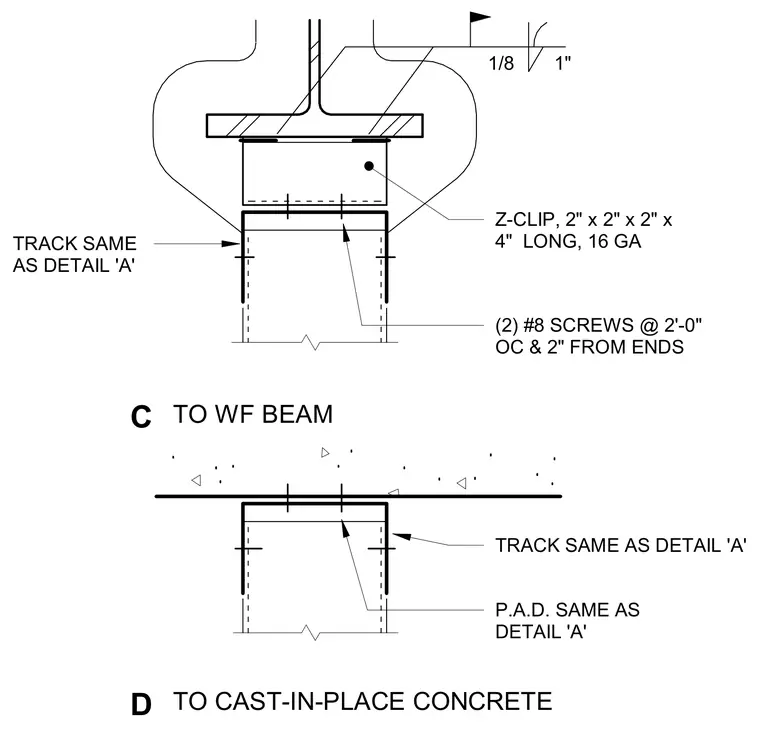

Cold-formed steel stud tracks attach to structural overhead supports using two distinct connection details. The first assembly connects the track to a wide flange beam using a 16-gauge Z-clip measuring 2 inches by 2 inches by 2 inches by 4 inches long. The Z-clip is welded to the underside of the beam flange with a one-eighth-inch fillet weld, and the stud track secures to the Z-clip using two number 8 self-drilling screws spaced at 2 feet on center and 2 inches from each end, with a one-inch pad inserted between elements. The second assembly connects the stud track directly to a cast-in-place concrete substrate using a matching pad and screw configuration.
TRACK SAME AS DETAIL 'A' (2) #8 SCREWS @ 2'-0" OC & 2" FROM ENDS Z-CLIP, 2" x 2" x 2" x 4" LONG, 16 GA 1/8 1" P.A.D. SAME AS DETAIL 'A' TRACK SAME AS DETAIL 'A' TO CAST-IN-PLACE CONCRETE D TO WF BEAM C
