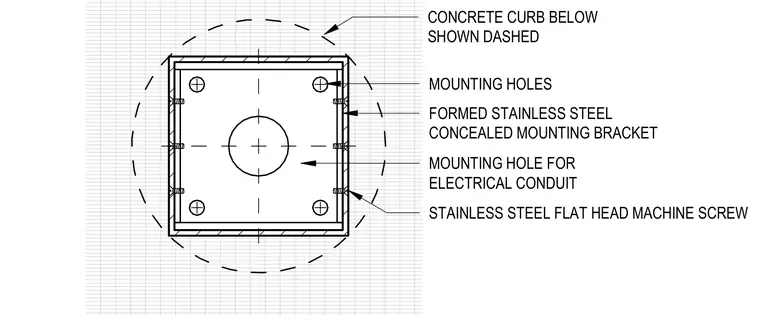

This bollard base assembly consists of a formed stainless steel concealed mounting bracket secured with stainless steel flat head machine screws. A central mounting hole accommodates incoming electrical conduit, while corner mounting holes anchor the bracket to the underlying concrete curb shown with dashed lines.
MOUNTING HOLES FORMED STAINLESS STEEL CONCEALED MOUNTING BRACKET MOUNTING HOLE FOR ELECTRICAL CONDUIT STAINLESS STEEL FLAT HEAD MACHINE SCREW CONCRETE CURB BELOW SHOWN DASHED
