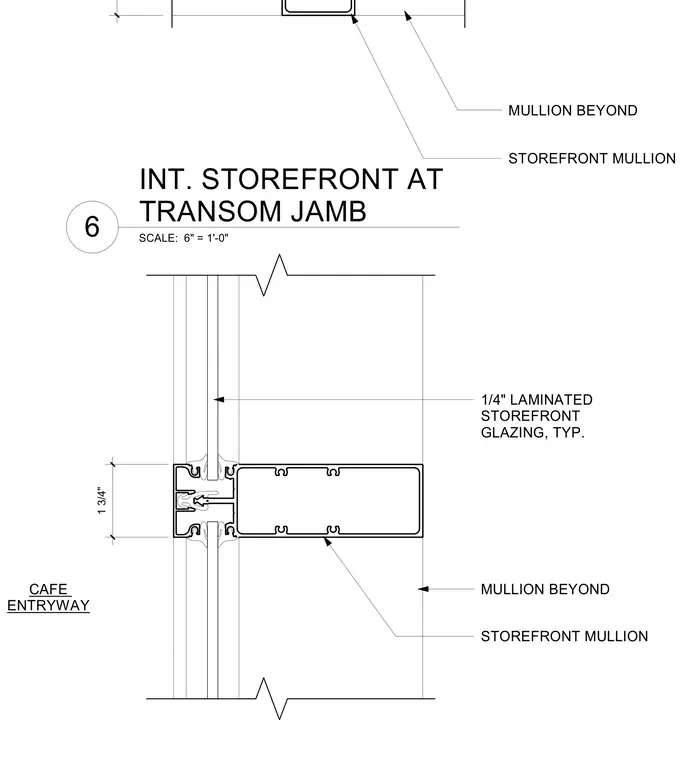

An interior storefront system is anchored at the transom jamb with a 1-3/4 inch storefront mullion profile paired with an adjacent storefront mullion seen beyond. The glazing consists of 1/4 inch laminated storefront glass set typically into the frame pockets.
STOREFRONT MULLION MULLION BEYOND CAFE ENTRYWAY 1 3/4" STOREFRONT MULLION MULLION BEYOND 1/4" LAMINATED STOREFRONT GLAZING, TYP. SCALE: 6" = 1'-0" 6 INT. STOREFRONT AT TRANSOM JAMB
