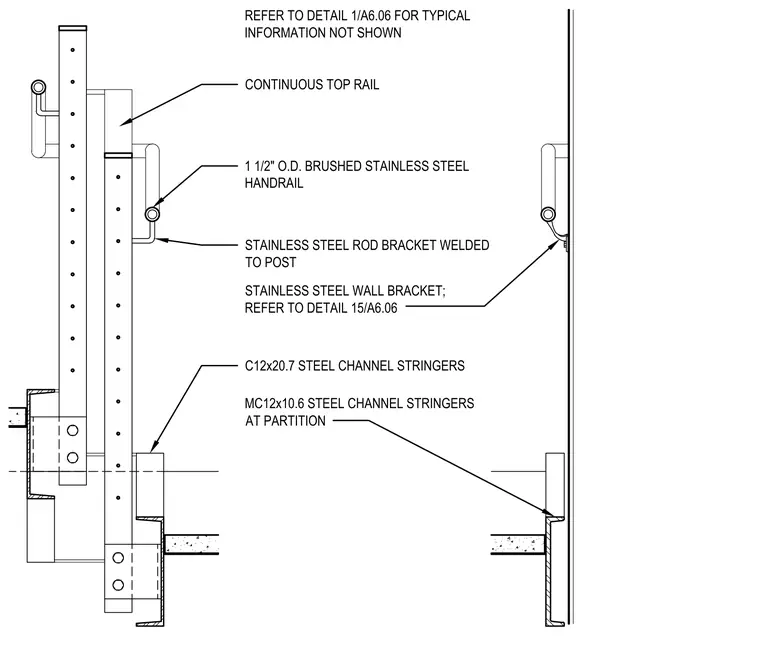

This stair detail features C12x20.7 steel channel stringers alongside MC12x10.6 steel channel stringers positioned at the partition. A continuous top rail pairs with a one and a half inch outside diameter brushed stainless steel handrail supported by stainless steel rod brackets welded to posts. A stainless steel wall bracket secures the handrail to the adjacent partition per detail references. Refer to sheet A6.06 for typical information not shown.
C12x20.7 STEEL CHANNEL STRINGERS MC12x10.6 STEEL CHANNEL STRINGERS AT PARTITION 1 1/2" O.D. BRUSHED STAINLESS STEEL HANDRAIL STAINLESS STEEL ROD BRACKET WELDED TO POST STAINLESS STEEL WALL BRACKET; REFER TO DETAIL 15/A6.06 REFER TO DETAIL 1/A6.06 FOR TYPICAL INFORMATION NOT SHOWN CONTINUOUS TOP RAIL
