Architectural · A-2QGFE

Exterior Wall Slab Edge and Deflection Track Detail

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Shear Walls Windows Storefronts Floors / Slabs Decks Expansion / Control Joints Waterproofing / Flashing Insulation

Connections

Expansion / Slip Connection

About this detail

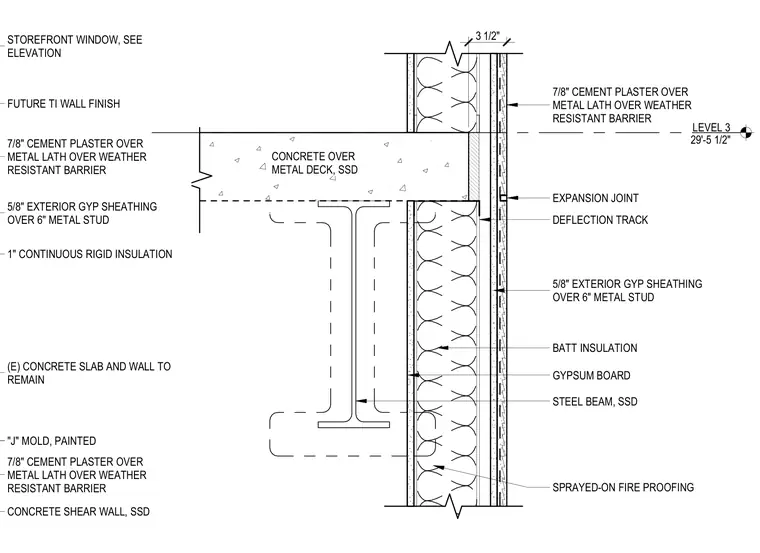

An exterior wall assembly meets the third-floor concrete slab on metal deck, supported by a structural steel beam with sprayed-on fireproofing. The exterior wall consists of six-inch metal studs with batt insulation, five-eighths-inch exterior gypsum sheathing, a weather-resistant barrier, and seven-eighths-inch cement plaster. An expansion joint and deflection track occur at the slab intersection to accommodate structural movement. The interior side is finished with gypsum board, while the exterior features a painted J-mold and one-inch continuous rigid insulation against an existing concrete shear wall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
