Framing and joint details for wood corridor partitions intersecting wood floor-ceiling assemblies and post-tensioned concrete slabs. The partitions utilize wood framing with two-inch nominal lumber functioning as fireblocks at partition lines, faced with one layer of 5/8-inch Type X gypsum board to the underside of sheathing. Acoustical and fire sealants of 1/2-inch thickness are detailed at joints between gypsum underlayment and wallboards, alongside resilient sealants. Floor framing includes wood I-joists running lengthwise down the hall and suspended from structural beams beyond. Building services zones and floor-to-ceiling levels are clearly demarcated from the roof down to the concrete base.

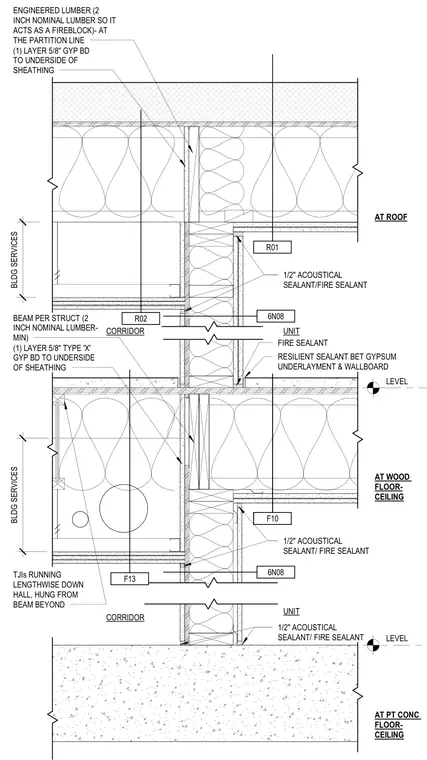

AT ROOF AT WOOD FLOOR- CEILING AT PT CONC FLOOR- CEILING LEVEL LEVEL UNIT CORRIDOR UNIT CORRIDOR 1/2" ACOUSTICAL SEALANT/ FIRE SEALANT RESILIENT SEALANT BET GYPSUM UNDERLAYMENT & WALLBOARD FIRE SEALANT BEAM PER STRUCT (2 INCH NOMINAL LUMBER- MIN) (1) LAYER 5/8" TYPE 'X' GYP BD TO UNDERSIDE OF SHEATHING ENGINEERED LUMBER (2 INCH NOMINAL LUMBER SO IT ACTS AS A FIREBLOCK)- AT THE PARTITION LINE (1) LAYER 5/8" GYP BD TO UNDERSIDE OF SHEATHING F10 R01 1/2" ACOUSTICAL SEALANT/FIRE SEALANT 6N08 6N08 1/2" ACOUSTICAL SEALANT/ FIRE SEALANT TJIs RUNNING LENGTHWISE DOWN HALL, HUNG FROM BEAM BEYOND F10 F13 BLDG SERVICES BLDG SERVICES R02
