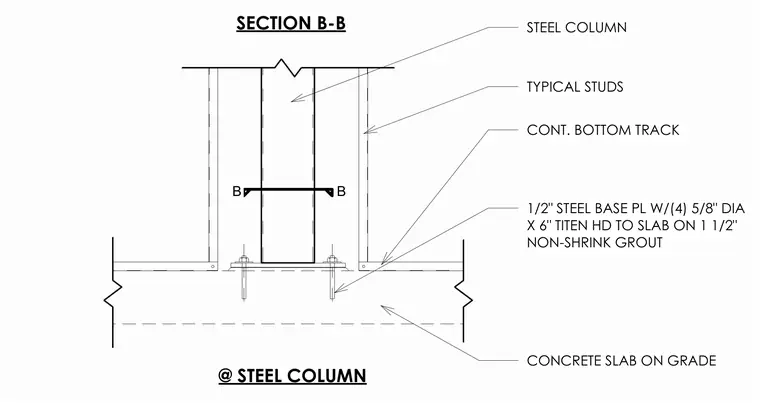

A steel column connects to a half-inch steel base plate secured with four five-eighths inch diameter by six-inch Titen HD anchors into the concrete slab on grade. A one-and-a-half-inch non-shrink grout layer sits beneath the base plate. Continuous bottom tracks and typical studs frame around the steel column base.
STEEL COLUMN TYPICAL STUDS CONT. BOTTOM TRACK 1/2" STEEL BASE PL W/(4) 5/8" DIA X 6" TITEN HD TO SLAB ON 1 1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE B B @ STEEL COLUMN SECTION B-B
