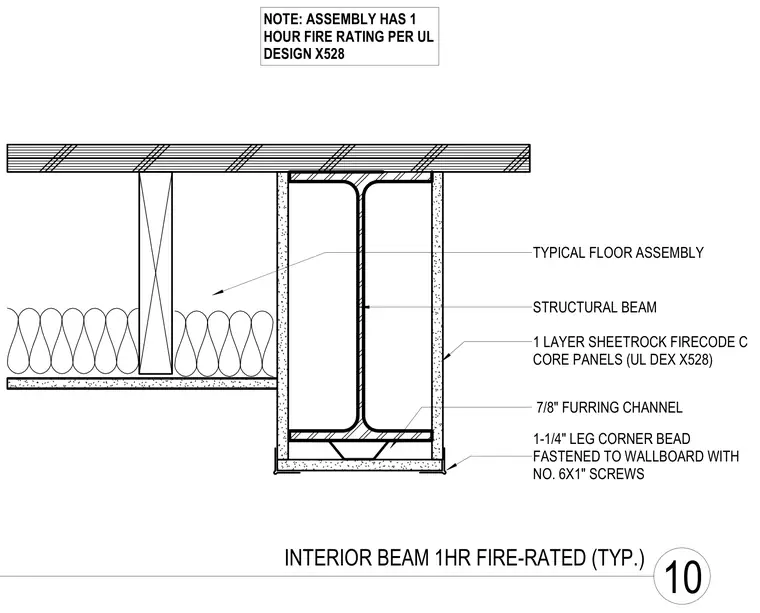

A structural steel beam is wrapped in one layer of gypsum wallboard panels to achieve a one-hour fire rating per UL Design X528. Seven-eighth-inch furring channels support the drywall assembly beneath the beam bottom flange. One-and-one-quarter-inch leg corner beads finish the exterior corners and are fastened to the wallboard using number six by one-inch screws.
STRUCTURAL BEAM 7/8" FURRING CHANNEL 1 LAYER SHEETROCK FIRECODE C CORE PANELS (UL DEX X528) 1-1/4" LEG CORNER BEAD FASTENED TO WALLBOARD WITH NO. 6X1" SCREWS NOTE: ASSEMBLY HAS 1 HOUR FIRE RATING PER UL DESIGN X528 TYPICAL FLOOR ASSEMBLY INTERIOR BEAM 1HR FIRE-RATED (TYP.) 10
