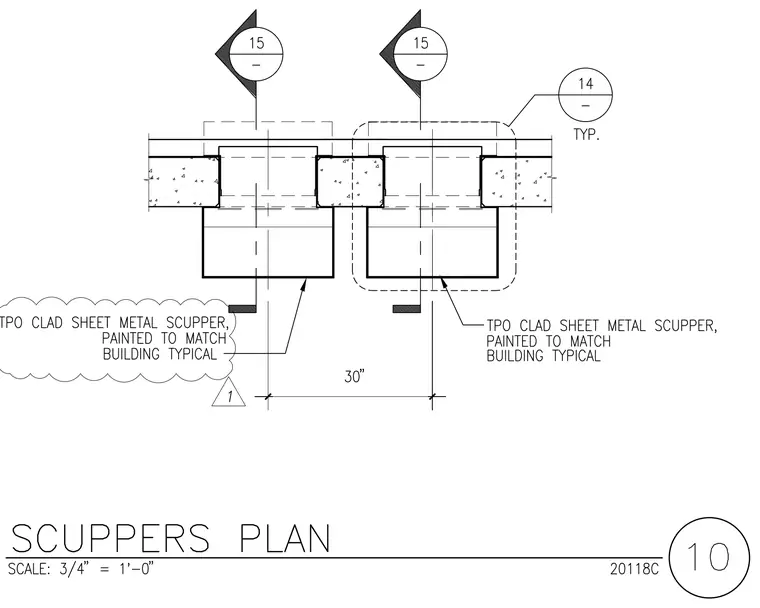

TPO clad sheet metal scuppers are installed at a thirty-inch spacing typical along the wall assembly. Each scupper is painted to match the building standard. Detail reference markers point to adjacent sections and elevations.
