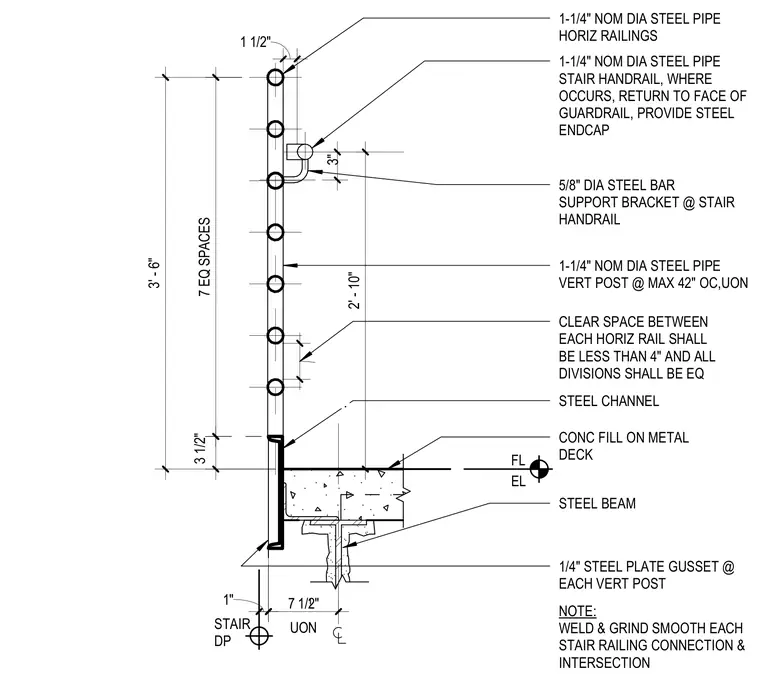

This assembly consists of vertical steel pipe posts anchored with a quarter-inch steel plate gusset to a steel channel at the edge of a concrete-filled metal deck and supporting steel beam. One-and-one-quarter-inch nominal diameter steel pipes serve as horizontal railings spaced with seven equal intervals to maintain a clear space of less than four inches between rails. A separate one-and-one-quarter-inch nominal diameter steel pipe stair handrail is connected to the guardrail posts using a five-eighths-inch diameter steel bar support bracket, returning to the face of the guardrail with a steel endcap where specified. All stair railing connections and intersections are welded and ground smooth.
STAIR DP UON 7 1/2" 1-1/4" NOM DIA STEEL PIPE HORIZ RAILINGS 1-1/4" NOM DIA STEEL PIPE STAIR HANDRAIL, WHERE OCCURS, RETURN TO FACE OF GUARDRAIL, PROVIDE STEEL ENDCAP 5/8" DIA STEEL BAR SUPPORT BRACKET @ STAIR HANDRAIL FL EL 7 EQ SPACES 1-1/4" NOM DIA STEEL PIPE VERT POST @ MAX 42" OC,UON CLEAR SPACE BETWEEN EACH HORIZ RAIL SHALL BE LESS THAN 4" AND ALL DIVISIONS SHALL BE EQ STEEL CHANNEL CONC FILL ON METAL DECK STEEL BEAM 1/4" STEEL PLATE GUSSET @ EACH VERT POST NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION 1" 3" 1 1/2" 2' - 10" 3' - 6" 3 1/2" 3 7/8" .
