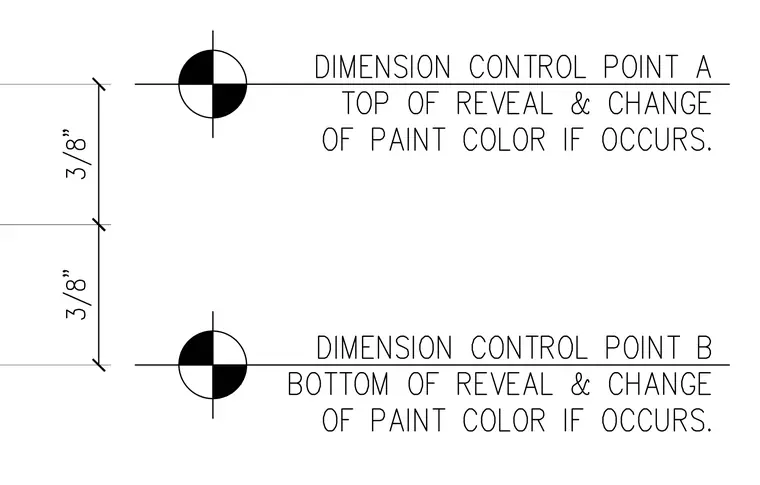

Dimension Control Point A marks the top of a reveal and change of paint color, while Dimension Control Point B marks the bottom of the reveal and paint color change. The two control points are vertically separated by a dimension of three-eighths of an inch.
