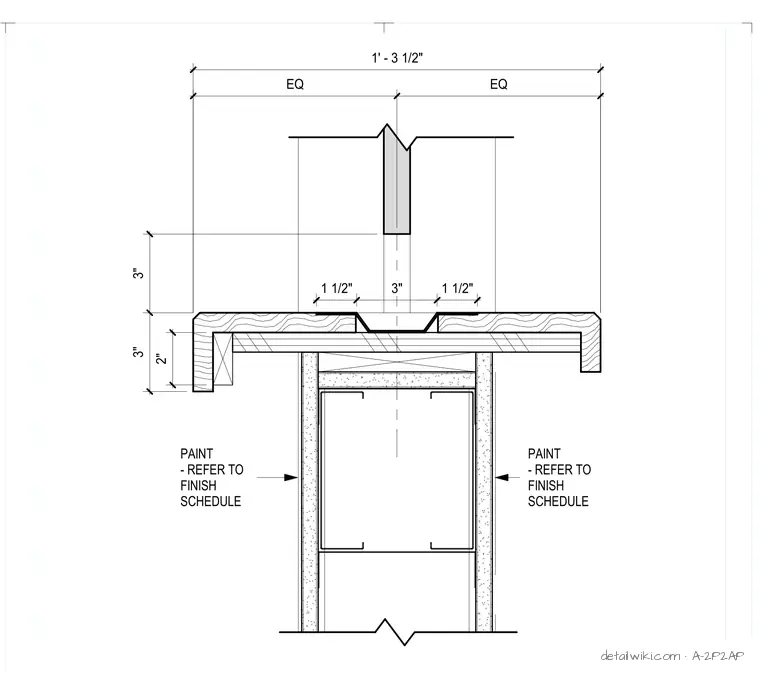

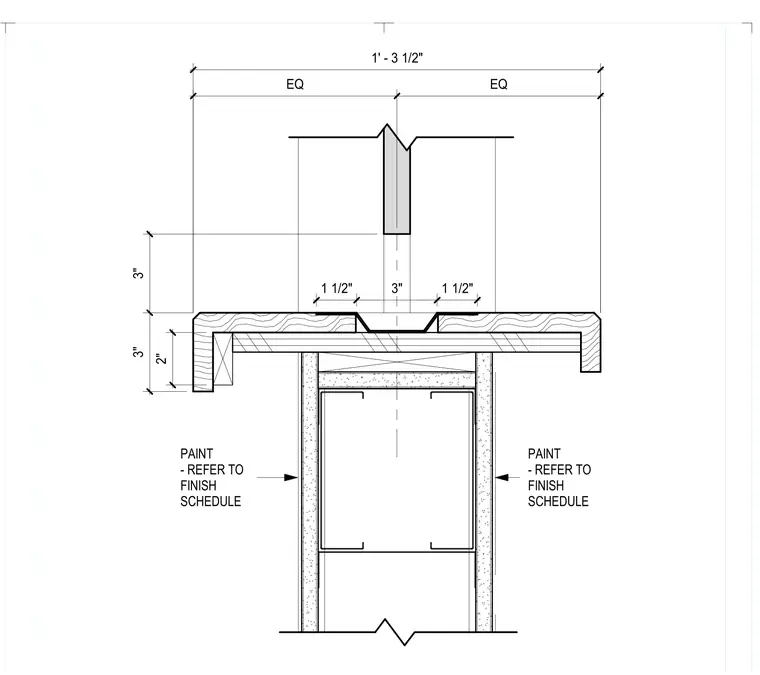

The transaction window sill assembly consists of a glass pane centered within a three-inch wide recessed metal track. This track is embedded into a wood countertop that features a two-inch thick profile and a three-inch total depth. The countertop is supported by a metal stud partition wall finished with gypsum board on both sides, which are to be painted per the finish schedule. The total width of the countertop assembly is one foot three and one-half inches, with the track centered and flanked by equal spacing.
