Accessible Wall Hung Urinal Clearances and Mounting Details

Elements

About this detail

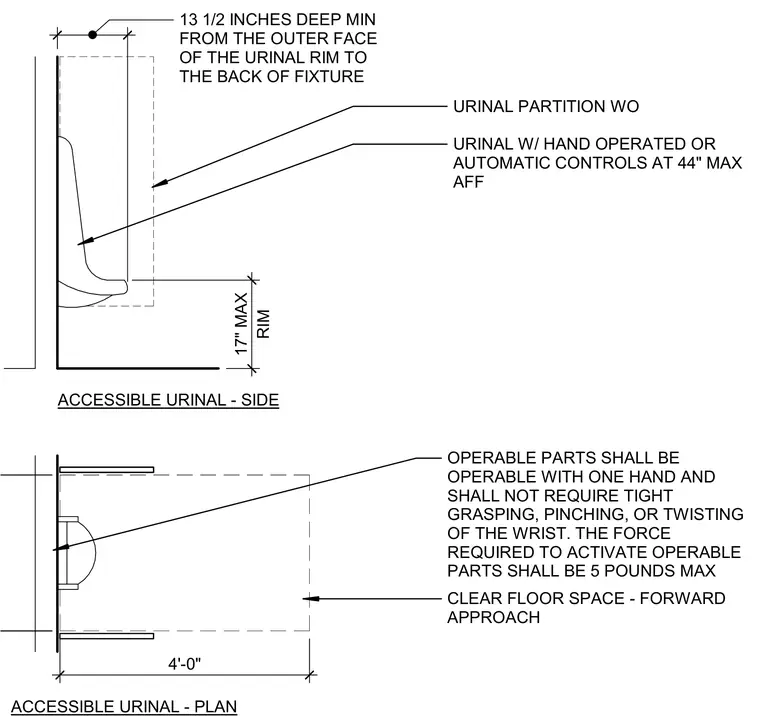

An accessible wall hung urinal features manual or automatic controls positioned at a maximum of 44 inches above the finished floor, with a rim height of 17 inches maximum. The fixture requires a minimum depth of 13 1/2 inches from the outer face of the rim to the back of the fixture, flanked by partition walls. A clear floor space for a forward approach extends 4 feet out from the wall. Operable parts are designed to be operated with one hand without tight grasping, pinching, or twisting of the wrist, requiring a maximum activation force of 5 pounds.
