A four-inch minimum concrete housekeeping pad bears on a roughened four-inch topping concrete slab. The pad is reinforced with six by six ten-slash-ten welded wire fabric and anchored using number four drilled dowels with a two-inch embedment into epoxy grout at one foot six inches on center maximum each way with a minimum of four dowels per pad. The top level of the pad is held while the location and size are verified with mechanical and electrical contractors.

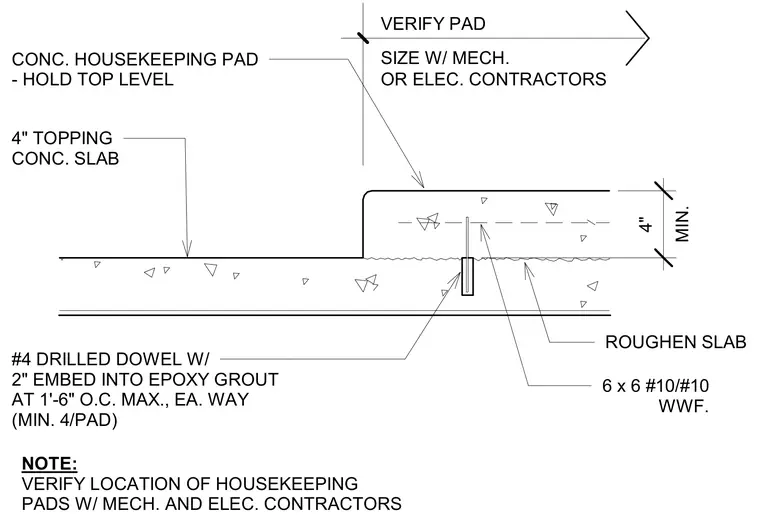

ROUGHEN SLAB 6 x 6 #10/#10 WWF. CONC. HOUSEKEEPING PAD - HOLD TOP LEVEL 4" TOPPING CONC. SLAB #4 DRILLED DOWEL W/ 2" EMBED INTO EPOXY GROUT AT 1'-6" O.C. MAX., EA. WAY (MIN. 4/PAD) NOTE: VERIFY LOCATION OF HOUSEKEEPING PADS W/ MECH. AND ELEC. CONTRACTORS OR ELEC. CONTRACTORS SIZE W/ MECH. VERIFY PAD MIN. 4"
