Longboard siding planks cut to suit on site mount to quick screen clips spaced at thirty-two inches on center and secured by number eight screws over a water-resistive barrier. A precision J-track finishes the bottom of the plank assembly above a metal fin and storefront window head assembly. Continuous butyl sealant with marriage beads is applied at all panel joints and horizontal trim beads. The entire cladding assembly ties back to an eight-inch concrete tilt-up leg panel.

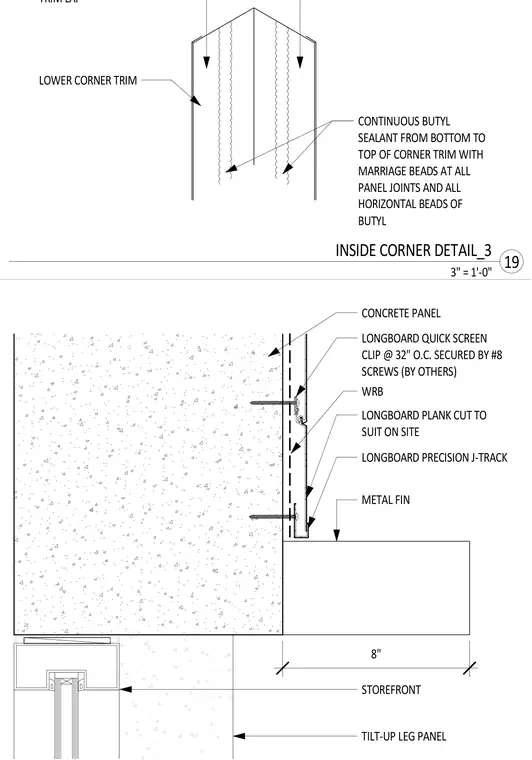

LOWER CORNER TRIM CONTINUOUS BUTYL SEALANT FROM BOTTOM TO TOP OF CORNER TRIM WITH MARRIAGE BEADS AT ALL PANEL JOINTS AND ALL HORIZONTAL BEADS OF BUTYL TRIM LAP LONGBOARD PRECISION J-TRACK LONGBOARD PLANK CUT TO SUIT ON SITE LONGBOARD QUICK SCREEN CLIP @ 32" O.C. SECURED BY #8 SCREWS (BY OTHERS) CONCRETE PANEL WRB STOREFRONT TILT-UP LEG PANEL METAL FIN 8" 3" = 1'-0" 19 INSIDE CORNER DETAIL_3
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
