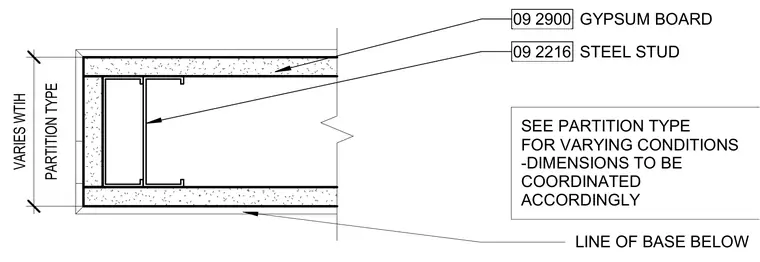

This interior partition jamb detail shows cold-formed steel studs faced with layers of gypsum board. The overall wall thickness varies according to the partition type scheduled elsewhere in the drawings. A reference note indicates that dimensions must be coordinated with the specific partition type conditions and the line of the base below.
PARTITION TYPE VARIES WTIH SEE PARTITION TYPE FOR VARYING CONDITIONS -DIMENSIONS TO BE COORDINATED ACCORDINGLY LINE OF BASE BELOW 09 2216 STEEL STUD 09 2900 GYPSUM BOARD
