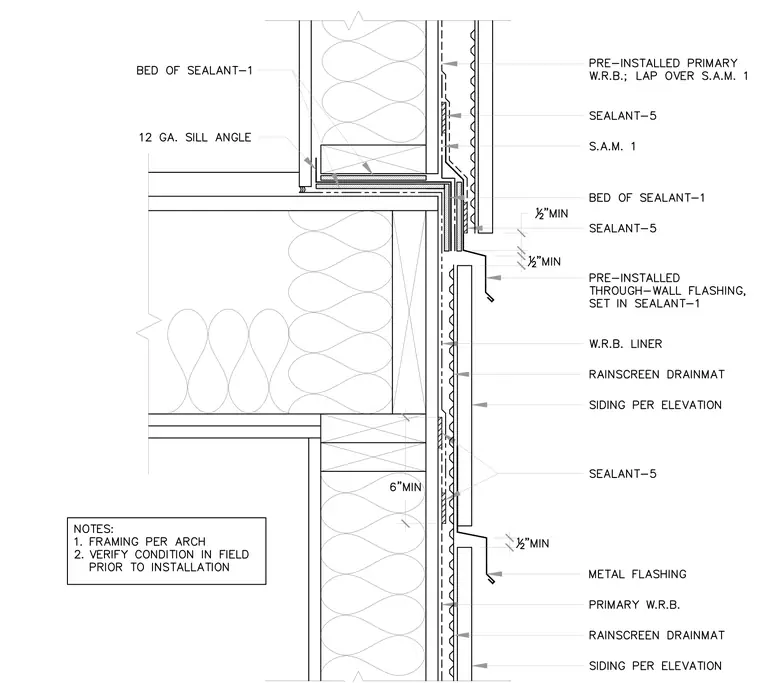

This wall section details the base of a tilt-up wall interfacing with framing, incorporating a 12-gauge sill angle set over a bed of sealant. The assembly integrates pre-installed primary water-resistive barrier, self-adhered membrane, and through-wall flashing set in sealant. Rainscreen drainmat and siding are applied over the exterior face, maintaining specified minimum clearances and weep/drainage paths. Insulation fills the framed cavities while continuous sealant joints seal the transition areas.
