The assembly features a forged brass valve body with a replaceable stainless steel seat and a replaceable fine metering stainless steel floating needle. Control is provided by a forged brass four-arm handle fitted with a colored plastic index disc and a three-sixteenths inch adjustment. The inlet consists of a three-eighths inch NPT female connection, or alternatively a three-eighths inch IPS mounting shank with locknut and washer as required at panel-mounted locations. A threaded brass floating escutcheon seals against the wall surface, and the outlet terminates in a removable ten-serration hose end.

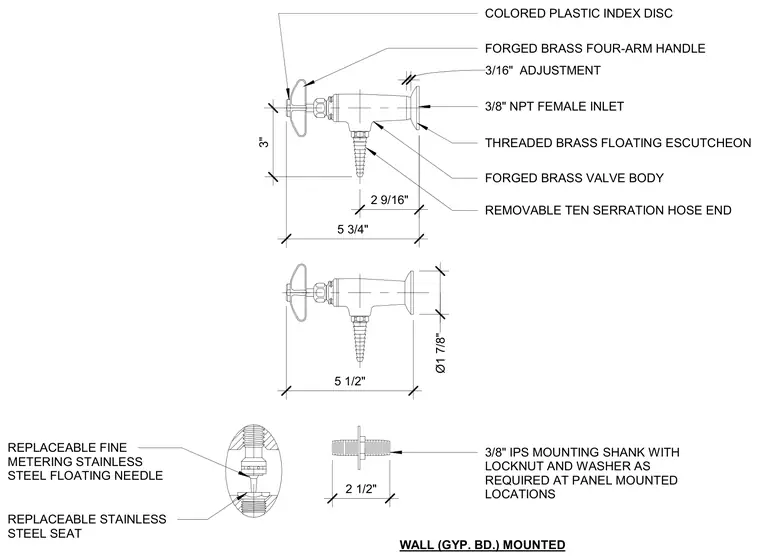

3/8" IPS MOUNTING SHANK WITH LOCKNUT AND WASHER AS REQUIRED AT PANEL MOUNTED LOCATIONS 2 1/2" COLORED PLASTIC INDEX DISC FORGED BRASS FOUR-ARM HANDLE THREADED BRASS FLOATING ESCUTCHEON 3/8" NPT FEMALE INLET FORGED BRASS VALVE BODY REMOVABLE TEN SERRATION HOSE END WALL (GYP. BD.) MOUNTED 3" 2 9/16" 5 3/4" 3/16" ADJUSTMENT Ø1 7/8" 5 1/2" REPLACEABLE STAINLESS STEEL SEAT REPLACEABLE FINE METERING STAINLESS STEEL FLOATING NEEDLE
