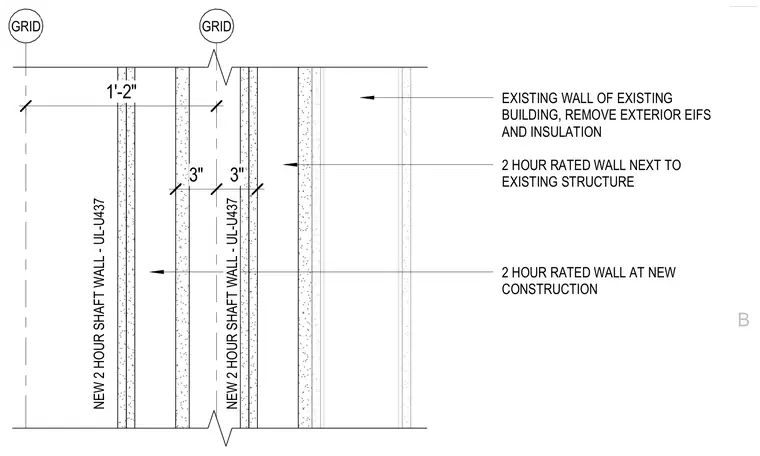

Two new two-hour shaft walls conforming to UL-U437 are constructed adjacent to an existing building wall after removing the exterior insulation and finish system and insulation. Dimensions indicate a three-inch gap between the shaft wall assemblies and a one-foot two-inch dimension from the grid line to the first shaft wall layer. The existing wall is maintained while new two-hour rated construction is built alongside it.
GRID GRID EXISTING WALL OF EXISTING BUILDING, REMOVE EXTERIOR EIFS AND INSULATION 2 HOUR RATED WALL NEXT TO EXISTING STRUCTURE 2 HOUR RATED WALL AT NEW CONSTRUCTION 1'-2" 3" 3" NEW 2 HOUR SHAFT WALL - UL-U437 NEW 2 HOUR SHAFT WALL - UL-U437 B
